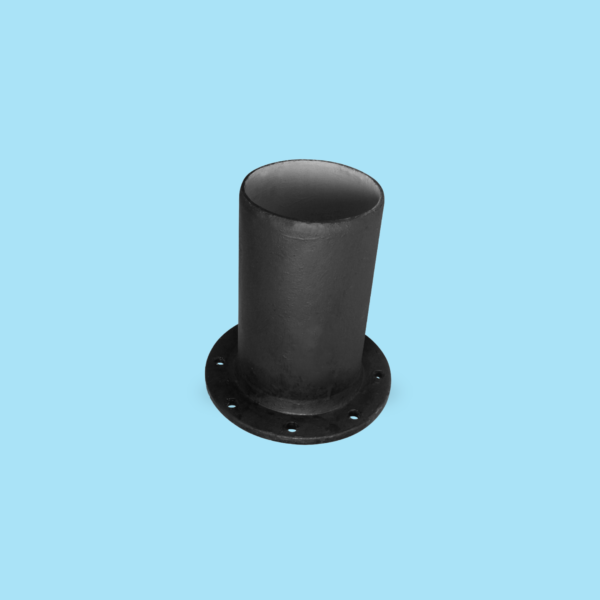

| No | Part Name | Material |
|---|---|---|
| 1 | Body | Ductile Iron |
| 2 | Flange Standard | BS 1092 – PN16 |
| 3 | Paint | Zinc Coat Topped with Bituminous or Epoxy |

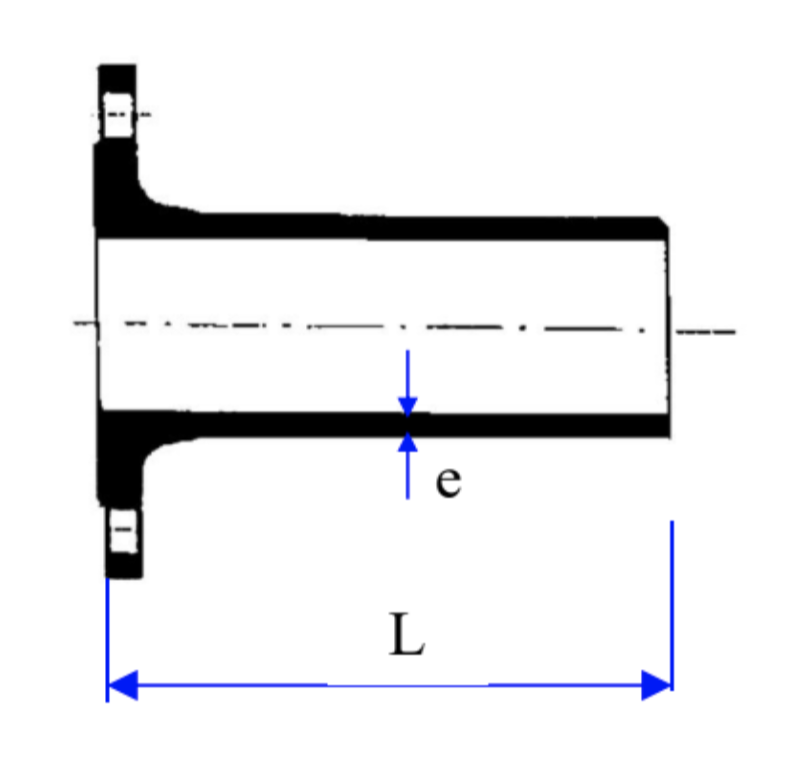

| Nominal size DN | Dimensions, mm | Mass, PN16 Flange | Extra Mass for Cement Mortar Lining | |
|---|---|---|---|---|
| r | L | Kg | Kg | |
| 80 | 7.0 | 350 | 7.9 | 0.6 |
| 100 | 7.2 | 360 | 9.7 | 0.8 |
| 150 | 7.8 | 380 | 15.6 | 1.3 |
| 200 | 8.4 | 400 | 22.5 | 1.8 |
| 250 | 9.0 | 420 | 33.0 | 2.4 |
| 300 | 7.2 | 440 | 40.0 | 3.0 |
| 350 | 7.7 | 460 | 54.5 | 6.0 |
| 400 | 8.1 | 480 | 67.0 | 7.0 |
| 450 | 8.6 | 500 | 85.0 | 8.0 |
| 500 | 9.0 | 520 | 108.0 | 9.0 |
| 600 | 9.9 | 560 | 161.0 | 12.0 |
| 700 | 10.8 | 600 | 185.0 | 18.0 |
| 800 | 11.7 | 600 | 235.0 | 21.0 |
| 900 | 16.8 | 600 | 320.0 | 24.0 |
| 1000 | 18.0 | 600 | 395.0 | 26.0 |
| 1100 | 19.2 | 600 | 473.0 | 29.0 |
| 1200 | 20.4 | 600 | 567.0 | 32.0 |
| 1400 | 22.8 | 710 | 818.0 | 66.0 |
| 1600 | 25.2 | 780 | 1143.0 | 82.0 |
