MATERIAL SPECIFICATION
| No | Part Name | Material |
|---|---|---|
| 1 | Body | Ductile Iron |
| 2 | Flange | Ductile Iron |
| 3 | Screen | Stainless Steel |
| 4 | Bolts and Nuts | HDG |
| 5 | Paint | Epoxy |
* Test Pressure Nominal Pressure, PN : 16 Bar
| Suitable Media | Water / Oil |
| Working Temperature | -29ºC to 232ºC |

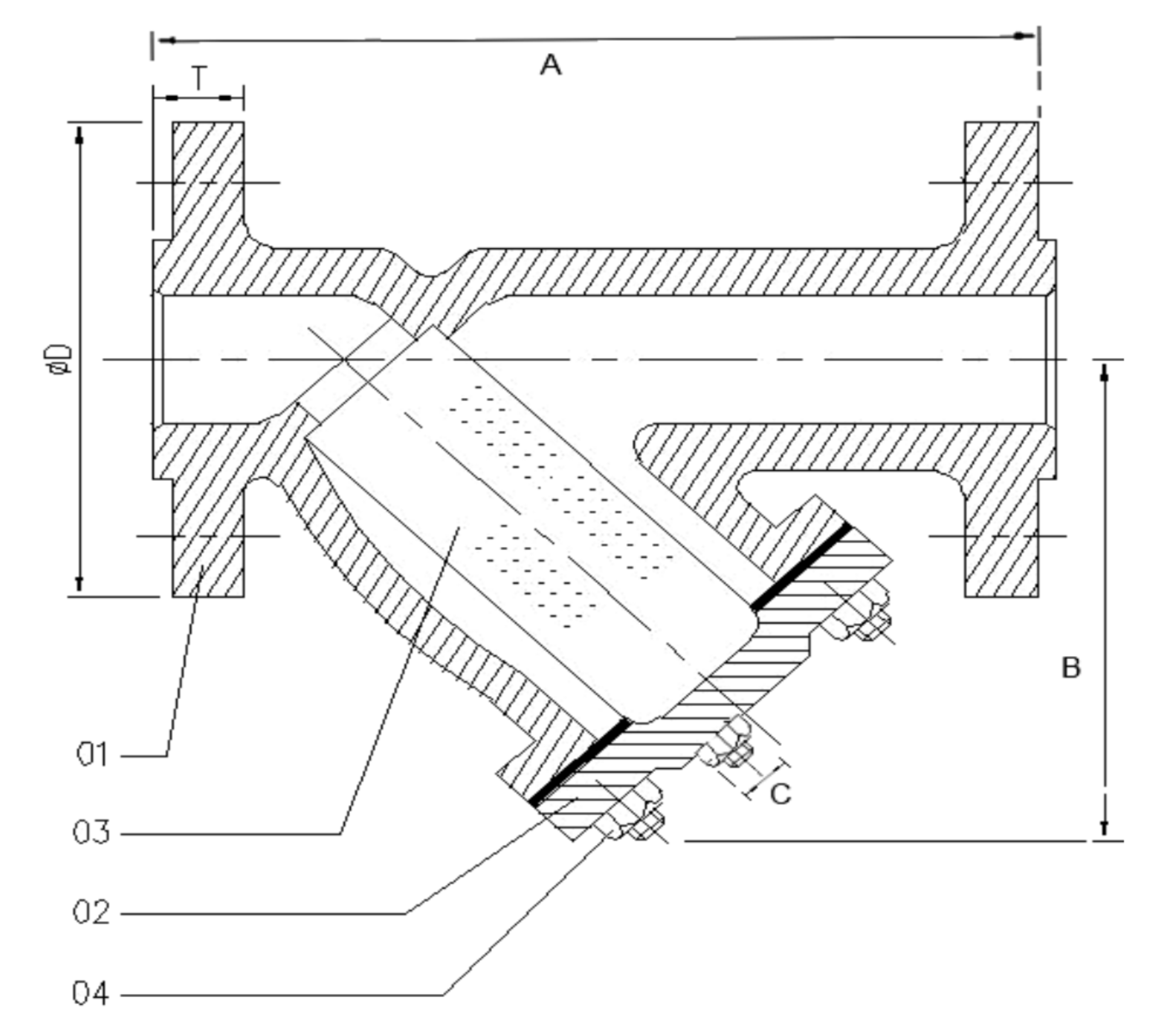

| SIZE | Dimension, mm | |||
|---|---|---|---|---|
| A | B | C | D | |
| 2″ | 225 | 152 | 13 | 152 |
| 2½” | 273 | 203 | 25 | 178 |
| 3″ | 292 | 222 | 25 | 190 |
| 4″ | 352 | 241 | 25 | 229 |
| 5″ | 416 | 292 | 32 | 254 |
| 6″ | 470 | 321 | 38 | 279 |
| 8″ | 543 | 416 | 38 | 343 |
| 10″ | 660 | 483 | 51 | 406 |
| 12″ | 762 | 559 | 51 | 483 |
