MATERIAL SPECIFICATIONS

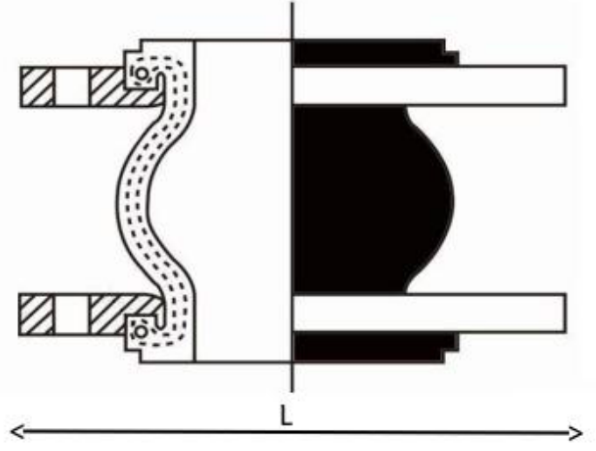

| Nominal Size DN | Length, MM | Max Compression | Max Elongation |
|---|---|---|---|
| L | (In MM) | (In MM) | |
| DN 80 | 135 | 15 | 8 |
| DN 100 | 150 | 19 | 10 |
| DN 150 | 180 | 20 | 12 |
| DN 200 | 210 | 25 | 16 |
| DN 250 | 230 | 25 | 16 |
| DN 300 | 245 | 25 | 16 |
| DN 350 | 255 | 25 | 16 |
| DN 400 | 255 | 25 | 16 |
| DN 450 | 255 | 25 | 16 |
| DN 500 | 255 | 25 | 16 |
| DN 600 | 260 | 25 | 16 |
