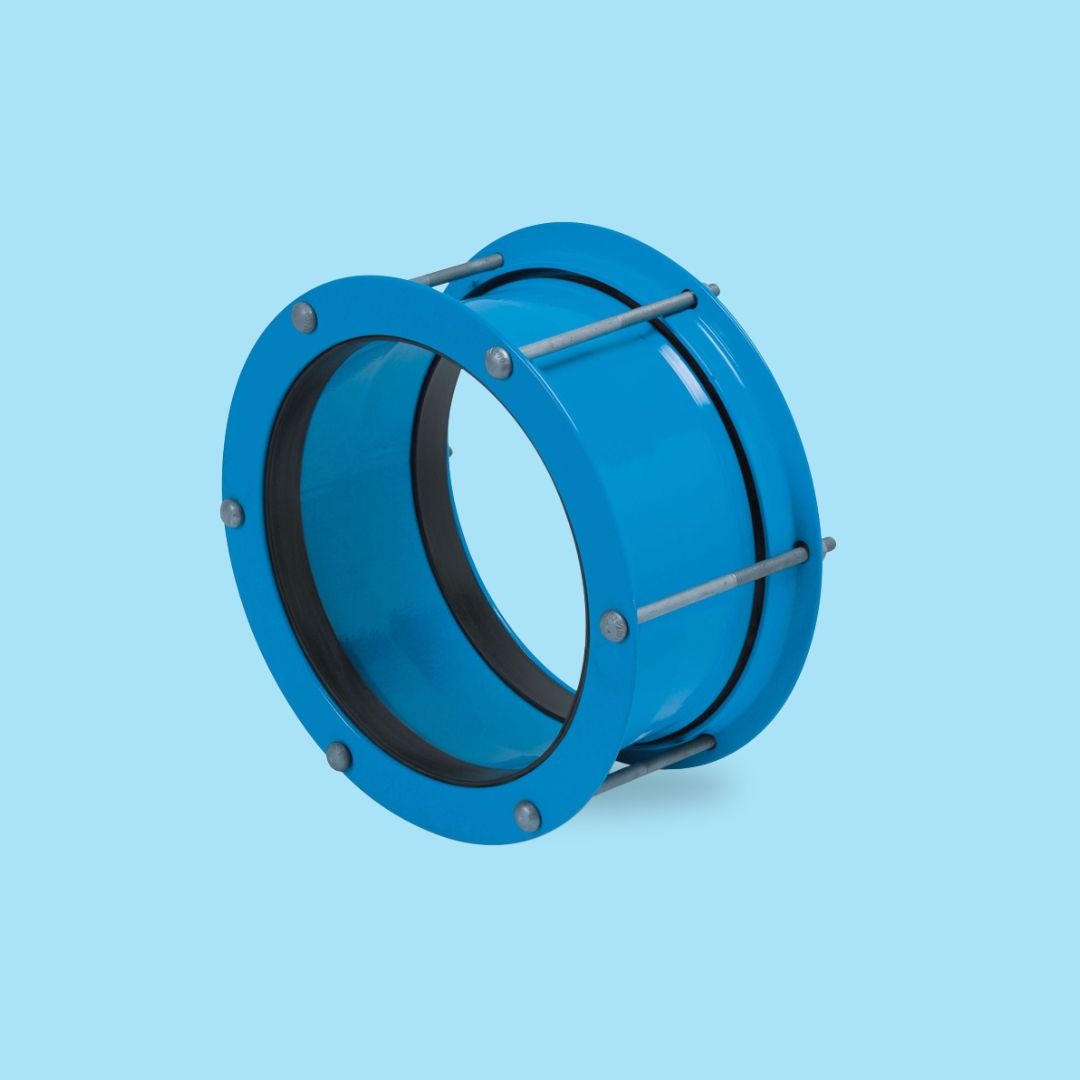

JKR Standard Specification No. 20200-0048-99
MATERIAL SPECIFICATION
| Body | Ductile Iron |
| Stud Bolt | Hot Dipped Galvanized (HDG) |
| End Flange | Ductile Iron |
| Gasket | EPDM |
| Paint | Epoxy |
| Flange | PN16 |
MATERIAL SPECIFICATIONS

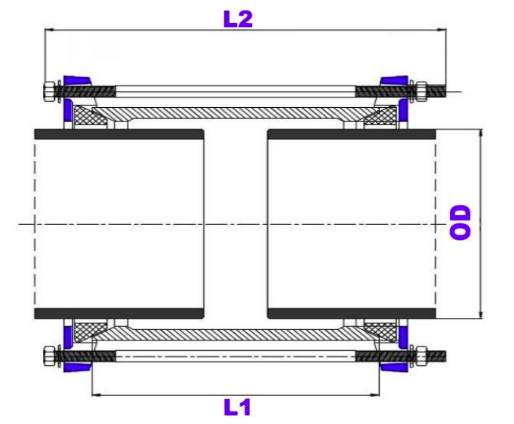

| Size | OD | L1 | L2 |
|---|---|---|---|
| mm | mm | mm | |
| DN 50 | 66 | 102 | M12 x 170 x 2 |
| DN 65 | 82 | 102 | M12 x 170 x 4 |
| DN 80 | 98 | 102 | M12 x 170 x 4 |
| DN 100 | 118 | 102 | M12 x 170 x 4 |
| DN 125 | 144 | 102 | M12 x 170 x 4 |
| DN 150 | 170 | 102 | M12 x 170 x 4 |
| DN 200 | 222 | 102 | M12 x 180 x 6 |
| DN 250 | 274 | 102 | M12 x 180 x 6 |
| DN 300 | 326 | 102 | M12 x 190 x 6 |
| DN 350 | 378 | 152 | M16 x 240 x 8 |
| DN 400 | 429 | 152 | M16 x 240 x 8 |
| DN 450 | 480 | 152 | M16 x 240 x 10 |
| DN 500 | 532 | 152 | M16 x 250 x 10 |
| DN 600 | 635 | 152 | M16 x 250 x 10 |
| DN 700 | 738 | 152 | M16 x 260 x 12 |
| DN 800 | 842 | 152 | M16 x 260 x 12 |
| DN 900 | 945 | 178 | M16 x 290 x 14 |
| DN 1000 | 1048 | 178 | M16 x 300 x 14 |
