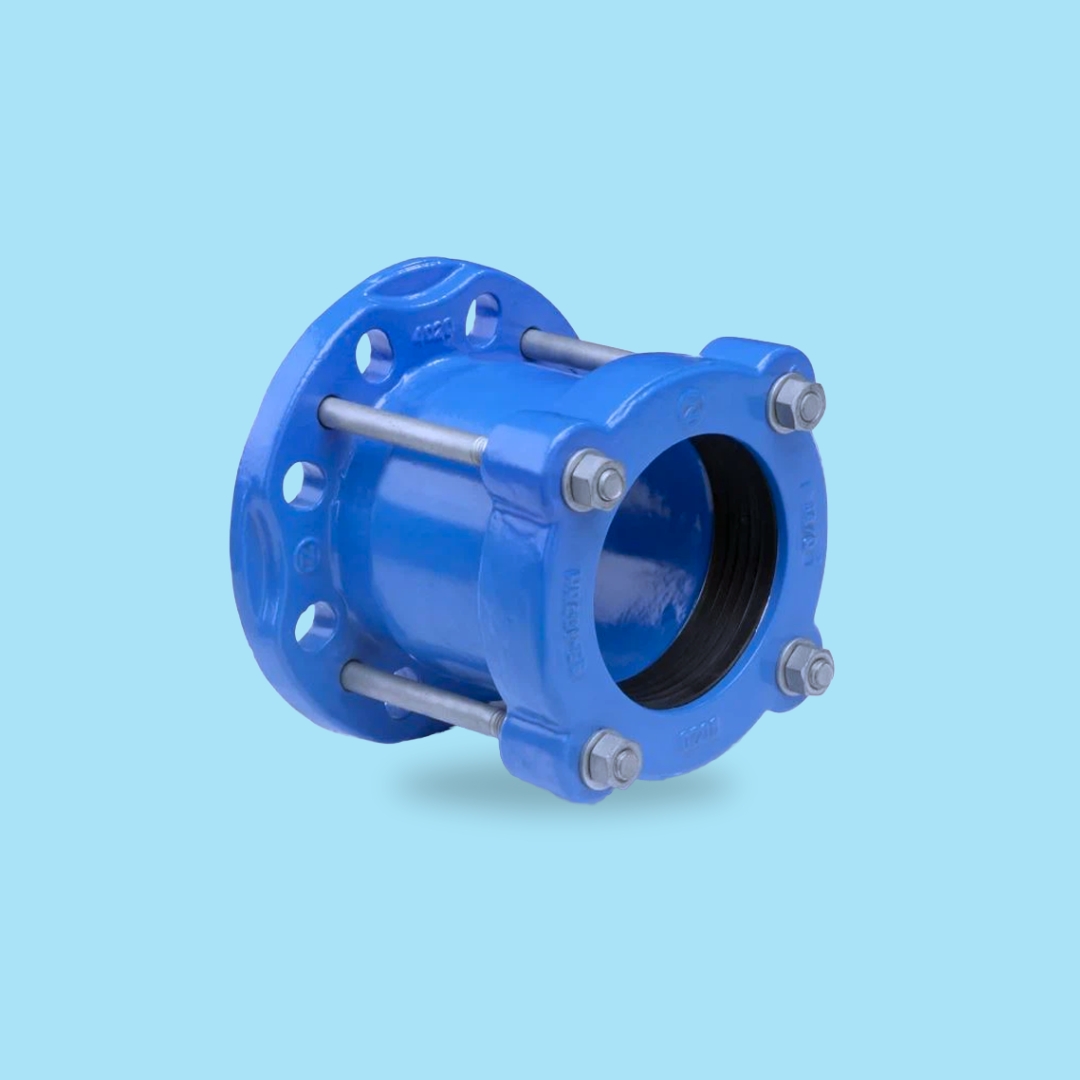

JKR Standard No. 20200-0048-99
SPECIFICATION
| Body | Ductile Iron |
| Stud Bolt | Hot Dipped Galvanized (HDG) |
| End Flange | Ductile Iron |
| Gasket | EPDM |
| Paint | Epoxy |
| Flange | PN16 |
MATERIAL SPECIFICATIONS

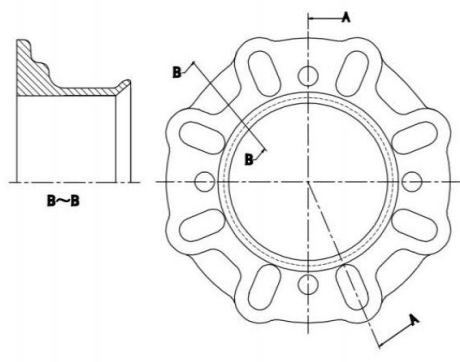

| DN | OD | D | b | K | L1 | Ø x N | M x L |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| 50 | 63 | 165 | 16 | 125 | 9"L | 19 x 4 | M12 x 110 x 4 |
| 80 | 90 | 200 | 16 | 160 | 9"L | 19 x 8 | M12 x 110 x 4 |
| 100 | 110 | 220 | 16 | 180 | 9"L | 19 x 8 | M12 x 110 x 4 |
| 150 | 160 | 285 | 16 | 240 | 9"L | 23 x 8 | M12 x 120 x 4 |
| 200 | 225 | 340 | 17 | 295 | 9"L | 23 x 12 | M12 x 130 x 6 |
| 250 | 280 | 400 | 19 | 355 | 9"L | 28 x 12 | M12 x 130 x 6 |
| 300 | 315 | 455 | 20.5 | 410 | 9"L | 28 x 12 | M12 x 130 x 6 |
| 350 | 355 | 520 | 22.5 | 470 | 9"L | 28 x 16 | M16 x 150 x 8 |
| 400 | 400 | 580 | 24 | 525 | 9"L | 31 x 16 | M16 x 150 x 8 |
| 450 | 450 | 640 | 26 | 585 | 9"L | 31 x 16 | M16 x 160 x 10 |
| 500 | 500 | 715 | 27.5 | 650 | 9"L | 34 x 20 | M16 x 160 x 10 |
| 600 | 630 | 840 | 31 | 770 | 9"L | 37 x 20 | M16 x 160 x 10 |
