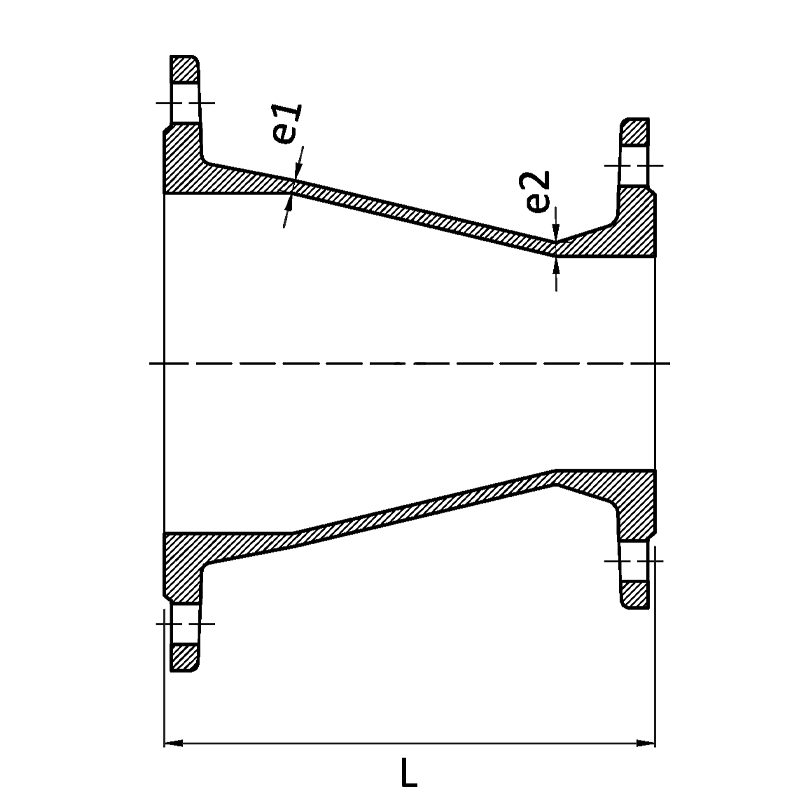

| DN x dn | e1 | e2 | L series A | L series B |
|---|---|---|---|---|
| 50 x 40 | 7.0 | 7.0 | 150 | 165 |
| 60 x 50 | 7.0 | 7.0 | 160 | 160 |
| 65 x 50 | 7.0 | 7.0 | 200 | 190 |
| 80 x 60 | 7.0 | 7.0 | 200 | 185 |
| 80 x 65 | 7.0 | 7.0 | 200 | 190 |
| 100 x 80 | 7.2 | 7.0 | 200 | 195 |
| 125 x 100 | 7.5 | 7.2 | 200 | 185 |
| 150 x 125 | 7.8 | 7.5 | 200 | 190 |
| 200 x 150 | 8.4 | 7.8 | 300 | 235 |
| 250 x 200 | 9.0 | 8.4 | 300 | 250 |
| 300 x 250 | 9.6 | 9.0 | 300 | 265 |
| 350 x 300 | 10.2 | 9.6 | 300 | 290 |
| 400 x 300 | 10.8 | 9.6 | 300 | - |
| 400 x 350 | 10.2 | 10.2 | 300 | 305 |
| 450 x 400 | 11.4 | 10.8 | 300 | 320 |
| 500 x 400 | 12.0 | 10.8 | 600 | - |
| 600 x 500 | 13.2 | 12.0 | 600 | - |
| 700 x 600 | 14.4 | 13.2 | 600 | - |
| 800 x 700 | 15.6 | 14.4 | 600 | - |
| 900 x 800 | 16.8 | 15.6 | 600 | - |
| 1000 x 900 | 18.0 | 16.8 | 600 | - |
| 1100 x 1000 | 19.2 | 18.0 | 600 | - |
| 1200 x 1000 | 20.4 | 18.0 | 790 | - |
| 1400 x 1200 | 22.8 | 20.4 | 850 | - |
| 1500 x 1400 | 24.0 | 22.8 | 695 | - |
| 1500 x 1400 | 25.2 | 22.8 | 910 | - |
| 1800 x1600 | 27.6 | 25.2 | 970 | - |
| 2000 x 1800 | 30.0 | 27.6 | 1030 | - |
