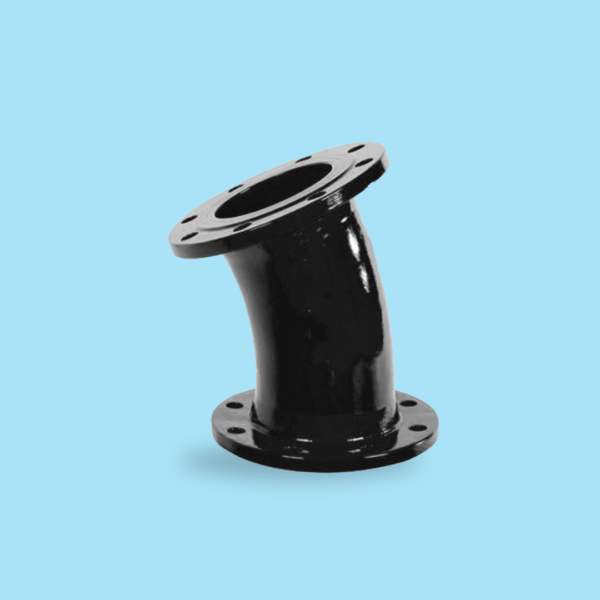

Double Flanged 22.5 Degree Bend

–

Double Flanged 22.5 Degree Bend

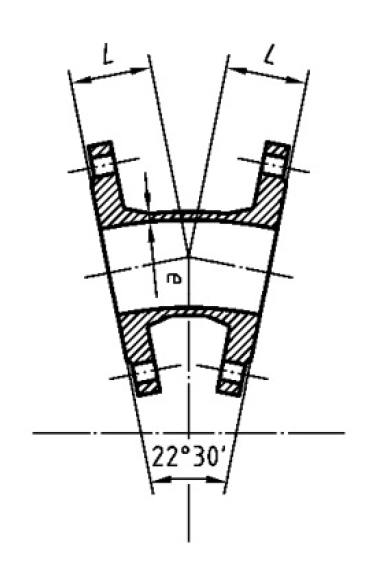

DN e L series A L series B
40 7 94 85
50 7 104 95
60 7 114 105
65 7 119 110
80 7 105 120
100 7.2 110 130
125 7.5 105 140
150 7.8 109 150
200 8.4 131 170
250 9 190 190
300 9.6 210 210
350 10.2 210 230
400 10.8 239 250
