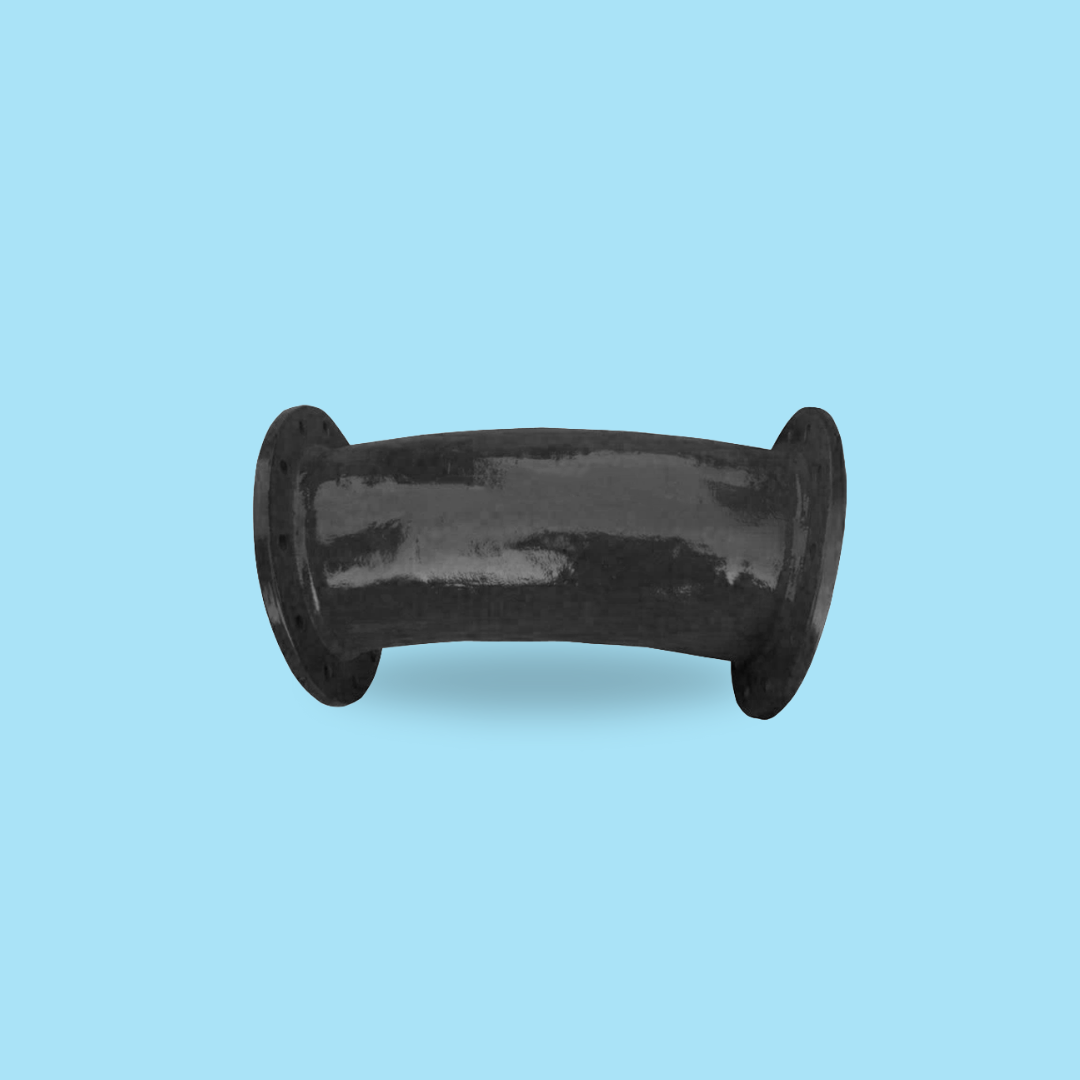

Double Flanged 11.25 Degree Bend

–

Double Flanged 11.25 Degree Bend

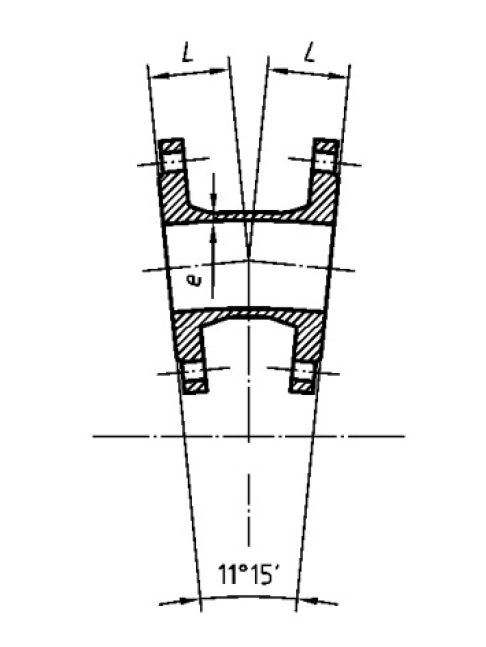

DN e L series A L series B
40 7 99 80
50 7 109 90
60 7 119 100
65 7 124 105
80 7 113 110
100 7.2 115 115
125 7.5 111 120
150 7.8 113 130
200 8.4 132 145
250 9 165 165
300 9.6 175 175
350 10.2 191 190
400 10.8 205 205
