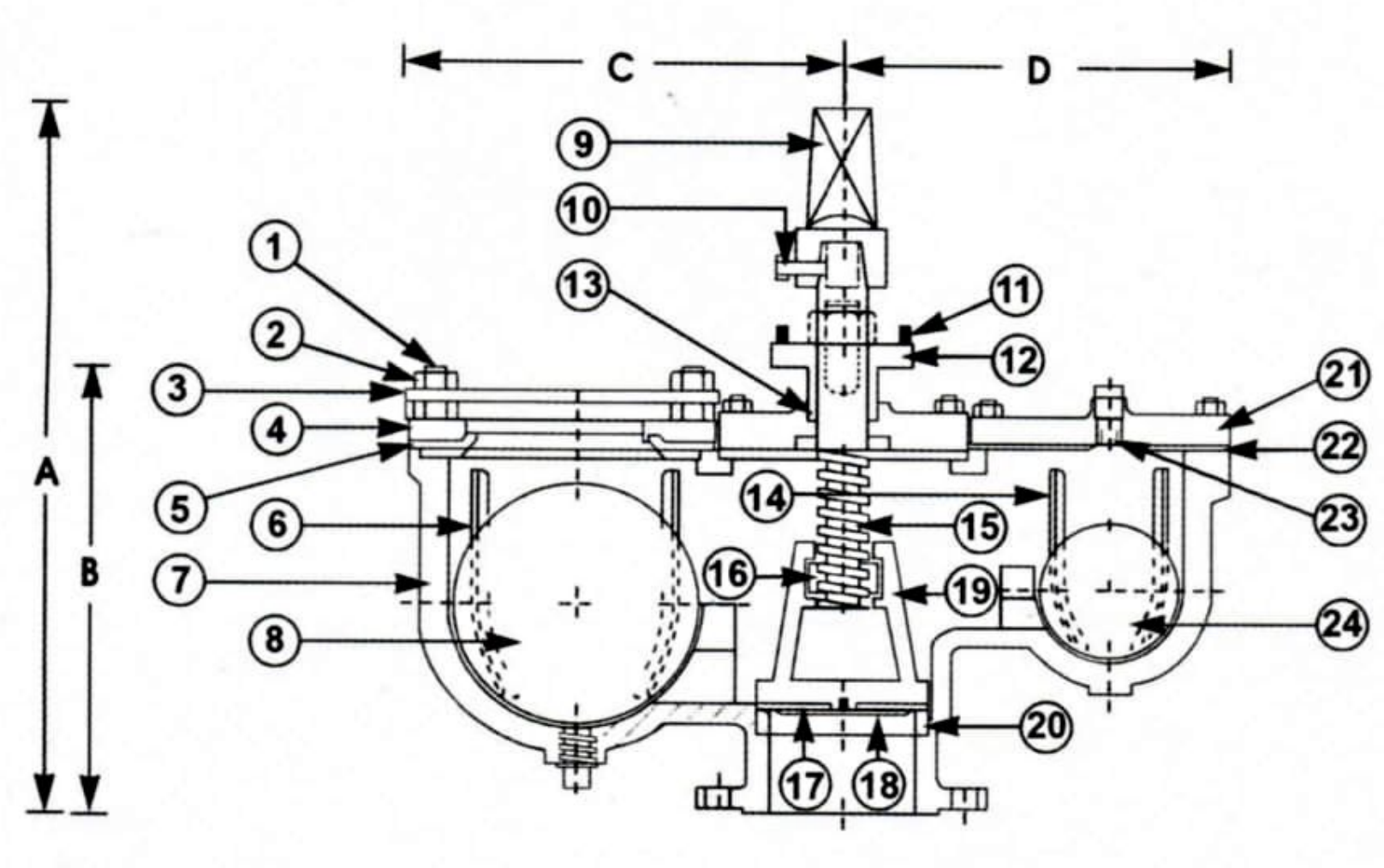

| NO |
DESCRIPTION |
MATERIAL |
BS REF NO. |
| 1 |
BOLT |
MILD STEEL (HOT DIP GAL.) |
BS 4190 (MS 740) |
| 2 |
NUTS |
MILD STEEL (HOT DIP GAL.) |
BS 4190 (MS 740) |
| 3 |
LARGE ORIFICE COVER |
DUCTILE IRON (420 / 12) |
BS EN 1563 |
| 4 |
LARGE ORIFICE PLATE |
DUCTILE IRON (420 / 12) |
BS EN 1563 |
| 5 |
GASKET |
EPDM RUBBER |
BE SN 681 |
| 6 |
BALL GUIDE |
DUCTILE IRON (420 / 12) |
BS EN 1563 |
| 7 |
BODY |
DUCTILE IRON (420 / 12) |
BS EN 1563 |
| 8 |
LARGE ORIFICE FLOAT (BALL) |
STAINLESS STEEL |
BS EN 10088 |
| 9 |
SPINDLE CAP |
DUCTILE IRON (420 / 12) |
BS EN 1563 |
| 10 |
CAP SET SCREW |
MILD STEEL (HOT DIP GAL.) |
BS 4190 (MS 740) |
| 11 |
GLAND BOLT |
MILD STEEL (HOT DIP GAL.) |
BS 4190 (MS 740) |
| 12 |
GLAND |
DUCTILE IRON (420 / 12) |
BS EN 1563 |
| 13 |
'O' RING |
EPDM RUBBER |
BS EN 681 |
| 14 |
BALL GUIDE |
DUCTILE IRON (420 / 12) |
BS EN 1563 |
| 15 |
SPINDLE |
HIGH TENSILE BRASS |
BS 2872 / 2874 CZ 116 / CZ114 |
| 16 |
SPINDLE NUT |
GUNMETAL |
BS 1400 LG2 |
| 17 |
SEAL |
EPDM RUBBER |
BS EN 681 |
| 18 |
SEAL NUT |
DUCTILE IRON (420 / 12) |
BS EN 1563 |
| 19 |
VALVE STOPPER |
DUCTILE IRON (420 / 12) |
BS EN 1563 |
| 20 |
VALVE SEAT RING |
DUCTILE IRON (420 / 12) |
BS EN 1563 |
| 21 |
SMALL ORIFICE PLATE |
DUCTILE IRON (420 / 12) |
BS EN 1563 |
| 22 |
GASKET |
EPDM RUBBER |
BS EN 681 |
| 23 |
AIR RELEASE NIPPLE |
BRASS |
BS 2872 / 2874 |
| 24 |
SMALL ORIFICE FLOAT (BALL) |
STAINLESS STEEL |
BS EB 10088 |
