JKR Standard Specification No. 20200-0048-99
| Body | Carbon Steel ASTM A283 Grade C |
| Flanges | BS EN 1092 : 2 |
| Bolts and Nuts | Hot Dipped Galvanized (HDG) |
| Gasket | EPDM or Neoprene |
| Finish | Epoxy Paint (Cold Applied) |

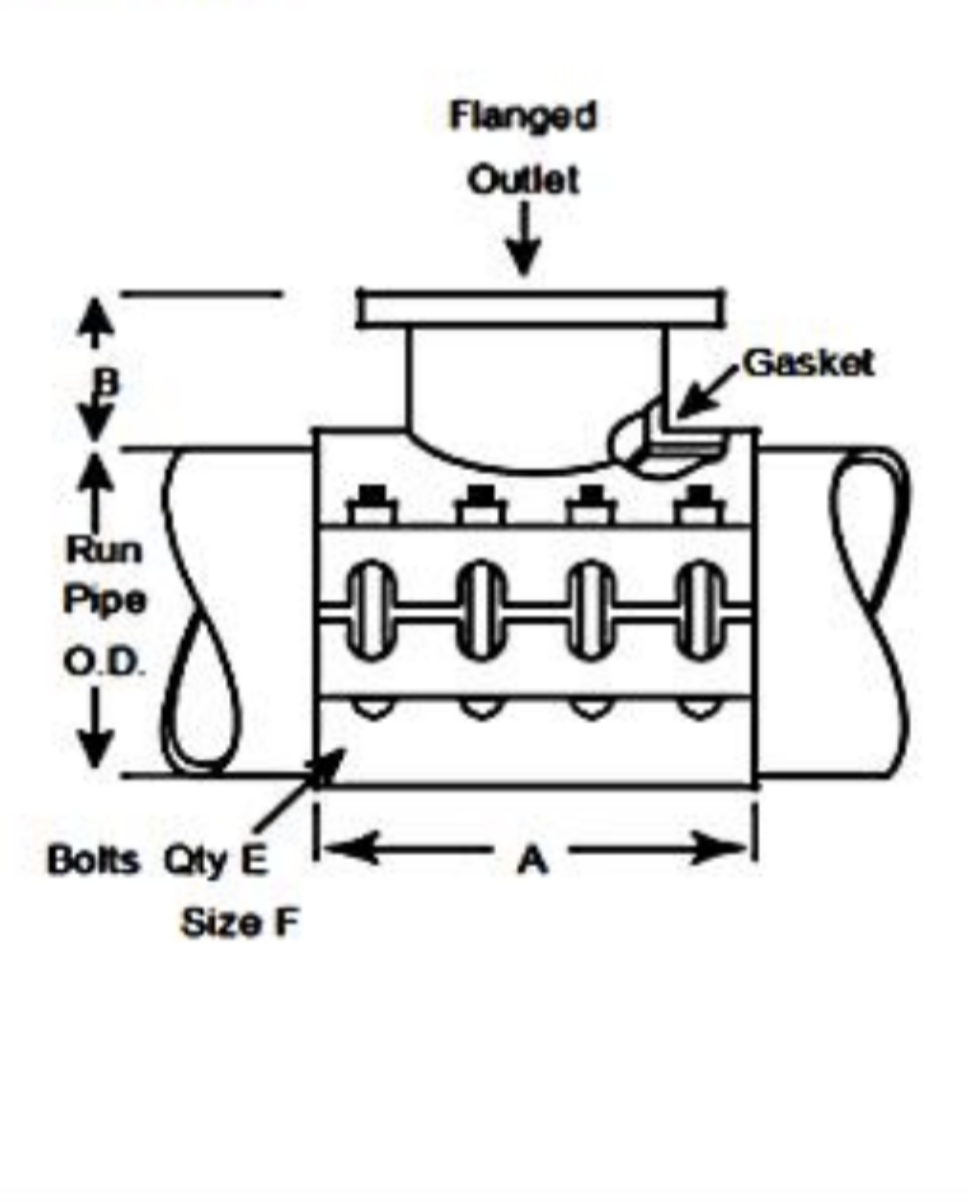

Side View

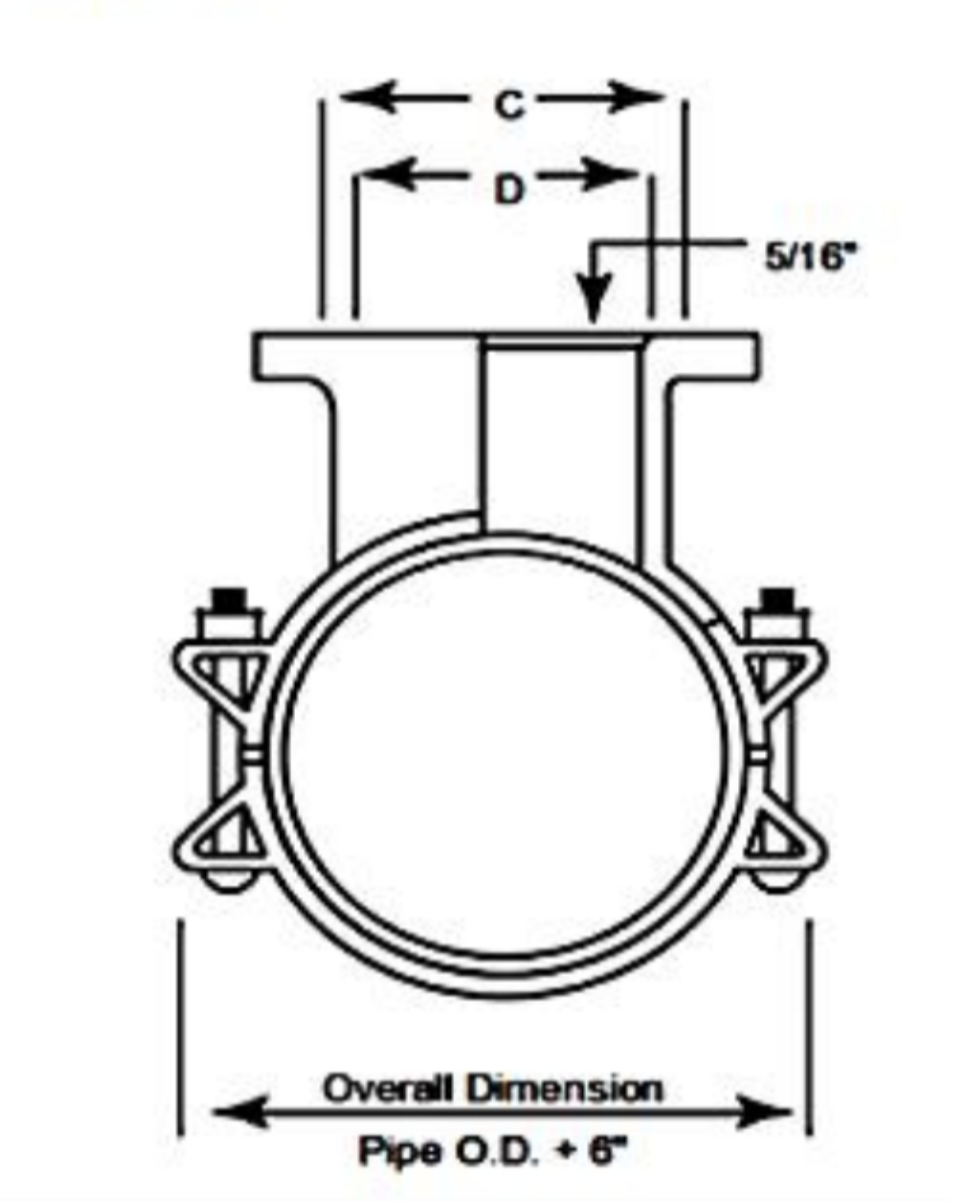

End View
| OUTLET SIZE (MM) | A (MM) | B (MM) | C (IN) | D (IN) | E (NO) | F (IN) |
|---|---|---|---|---|---|---|
| 50 | 225 | 100 | 3-1/32 | 2-1/16 | 6 | 5/8 |
| 80 | 225 | 100 | 4-1/32 | 3-1/4 | 6 | 5/8 |
| 100 | 300 | 100 | 5-1/32 | 4-1/4 | 6 | 5/8 |
| 150 | 300 | 100 | 7-1/32 | 6-5/16 | 8 | 5/8 |
| 200 | 400 | 100 | 9-1/32 | 8-6/16 | 8 | 3/4 |
| 250 | 525 | 100 | 11-1/16 | 10-3/8 | 10 | 3/4 |
| 300 | 600 | 100 | 13-1/16 | 12-3/8 | 12 | 3/4 |
