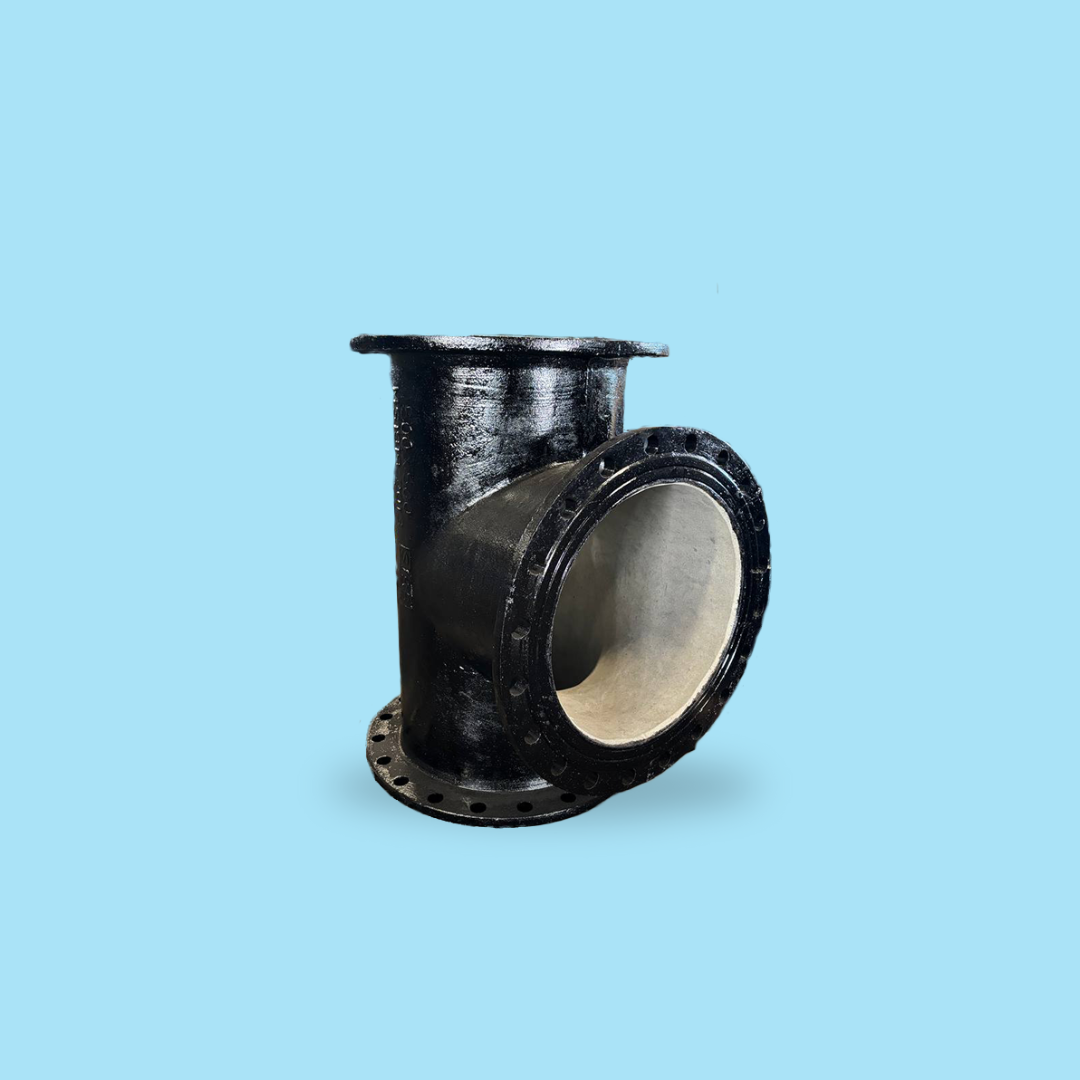

All Flanged Tee

–

All Flanged Tee

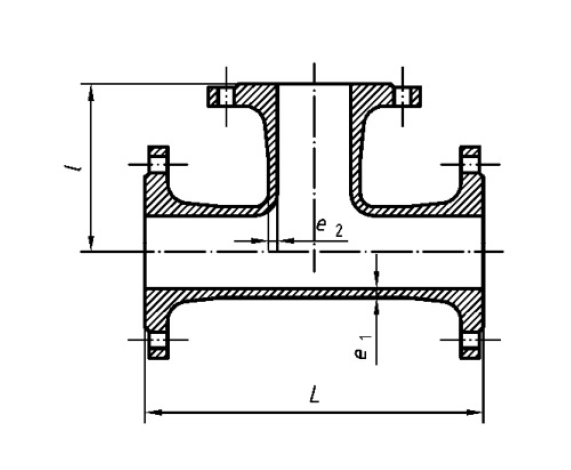

Table 30 - Dimensions of all Flanged Tees, DN40 to DN250
DN x dn Body Branch
e1 L series A L series B e2 l series A l series B
40 x 40 7.0 280 255 7.0 140 130
50 x 50 7.0 300 280 7.0 150 140
60 x 40 7.0 300 - 7.0 130 -
60 x 60 7.0 320 300 7.0 160 150
65 x 65 7.0 330 305 7.0 165 150
80 x 40 7.0 - 310 7.0 - 135
80 x 60 7.0 - 310 7.0 - 155
80 x 80 7.0 330 330 7.0 165 165
100 x 40 7.2 - 320 7.0 145
100 x 60 7.2 - 320 7.0 165
100 x 80 7.2 360 330 7.0 175 170
100 x 100 7.2 360 360 7.2 180 180
125 x 40 7.5 - 330 7.0 - 160
125 x 60 7.5 - 330 7.0 - 180
125 x 80 7.5 400 350 7.0 190 185
125 x 100 7.5 400 370 7.2 195 195
125 x 125 7.5 400 400 7.5 200 200
150 x 40 7.8 - 340 7.0 - 170
150 x 60 7.8 - 340 7.0 - 190
150 x 80 7.8 440 360 7.0 205 200
150 x 100 7.8 440 380 7.2 210 205
150 x 125 7.8 440 410 7.5 215 215
150 x 150 7.8 440 440 7.8 220 220
200 x 40 8.4 - 365 7.0 - 195
200 x 60 8.4 - 365 7.0 - 215
200 x 80 8.4 520 380 7.0 235 225
200 x 100 8.4 520 400 7.2 240 230
200 x 125 8.4 - 435 7.5 - 240
200 x 150 8.4 520 460 7.8 250 245
200 x 200 8.4 520 520 8.4 260 260
250 x 60 9.0 - 385 7.0 - 260
250 x 80 9.0 - 405 7.0 - 265
250 x 100 9.0 700 425 7.2 275 270
250 x 150 9.0 - 485 7.8 - 280
250 x 200 9.0 700 540 8.4 325 290
250 x 250 9.0 700 600 9.0 350 300
NOTE The main nominal size is designated DN and the nominal size of the branch is designated dn.
DN x dn Body Branch
e1 L series A L series B e2 l series A l series B
300 x 60 9.6 - 405 7.0 - 290
300 x 80 9.6 - 425 7.0 - 295
300 x 100 9.6 800 450 7.2 300 300
300 x 150 9.6 - 505 7.8 - 310
300 x 200 9.6 800 565 8.4 350 320
300 x 250 9.6 - 620 9.0 - 330
300 x 300 9.6 800 680 9.6 400 340
350 x 60 10.2 - 430 7.0 - 320
350 x 80 10.2 - 445 7.0 - 325
350 x 100 10.2 850 470 7.2 325 330
350 x 150 10.2 - 530 7.8 - 340
350 x 200 10.2 850 585 8.4 325 350
350 x 250 10.2 - 645 9.0 - 360
350 x 350 10.2 850 760 10.2 425 380
400 x 80 10.8 - 470 7.0 - 355
400 x 100 10.8 900 490 7.2 350 360
400 x 150 10.8 - 550 7.8 - 370
400 x 200 10.8 900 610 8.4 350 380
400 x 250 10.8 - 665 9.0 - 390
400 x 300 10.8 - 725 9.6 - 400
400 x 400 10.8 900 840 10.8 450 420
450 x 100 11.4 950 515 7.2 375 390
450 x 150 11.4 - 570 7.8 - 400
450 x 200 11.4 950 630 8.4 375 410
450 x 250 11.4 - 690 9.0 - 420
450 x 300 11.4 - 745 9.6 - 430
450 x 400 11.4 - 860 10.8 - 450
450 x 450 11.4 950 920 11.4 475 460
500 x 100 12.0 1000 535 7.4 400 420
500 x 200 12.0 1000 650 8.4 400 440
500 x 400 12.0 1000 885 10.8 500 480
500 x 500 12.0 1000 1000 12.0 500 500
600 x 200 13.2 1100 700 8.4 450 540
600 x 400 13.2 1100 930 10.8 550 580
600 x 600 13.2 1100 1165 13.2 550 -
700 x 200 14.4 650 - 8.4 525 -
700 x 400 14.4 870 - 10.8 555 -
700 x 700 14.4 1200 - 14.4 600 -
NOTE The main nominal size is designated DN and the nominal size of the branch is designated dn.
DN x dn Body Branch
e1 L series A e2 l series A
800 x 200 15.6 690 8.4 585
800 x 400 15.6 910 10.8 615
800 x 600 15.6 1350 13.2 645
800 x 800 15.6 1350 15.6 675
900 x 200 16.8 730 8.4 645
900 x 400 16.8 950 10.8 675
900 x 600 16.8 1500 13.2 705
900 x 900 16.8 1500 16.8 750
1000 x 200 18.0 770 8.4 705
1000 x 400 18.0 990 10.8 735
1000 x 600 18.0 1650 13.2 765
1000 x 1000 18.0 1650 18.0 825
1100 x 400 19.2 980 8.4 795
1100 x 600 19.2 1210 13.2 825
1200 x 600 20.4 1240 13.2 885
1200 x 800 20.4 1470 15.6 915
1200 x 1000 20.4 1700 18.0 945
1400 x 600 22.8 1550 13.2 980
1400 x 800 22.8 1760 15.6 1010
1400 x 1000 22.8 2015 18.0 1040
1500 x 600 24.0 1575 13.2 1035
1500 x 1000 24.0 2040 18.0 1095
1600 x 600 25.2 1600 13.2 1090
1600 x 800 25.2 1835 15.6 1120
1600 x 1000 25.2 2065 18.0 1150
1600 x 1200 25.2 2300 20.4 1180
1800 x 600 27.6 1655 13.2 1200
1800 x 800 27.6 1885 15.6 1230
1800 x 1000 27.6 2120 18.0 1260
1800 x 1200 27.6 2350 20.4 1290
2000 x 600 30.0 1705 13.2 1310
2000 x 1000 30.0 2170 18.0 1370
2000 x 1400 30.0 2635 22.8 1430
NOTE The main nominal size is designated DN and the nominal size of the branch is designated dn.
