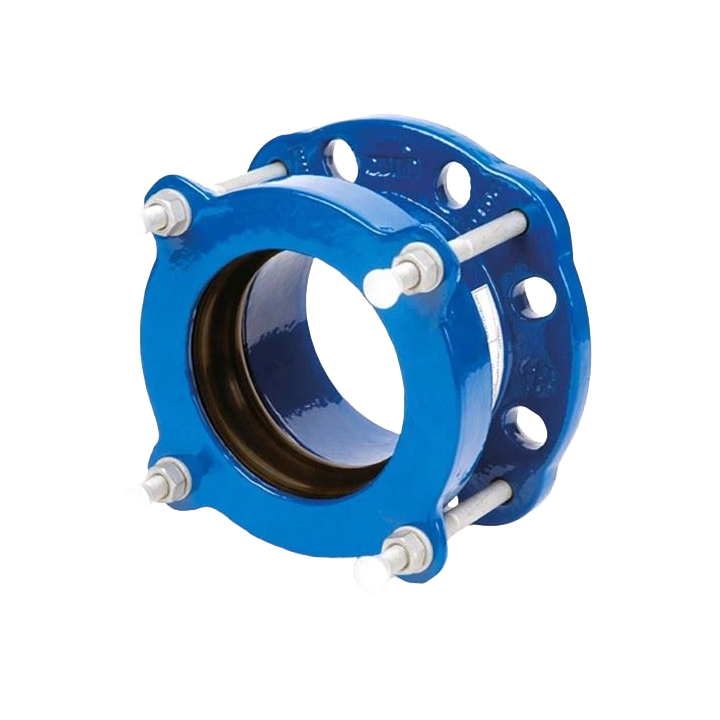

Flange Adaptor

Standard Specification :  
JKR Standard Specification No. 20200-0048-99

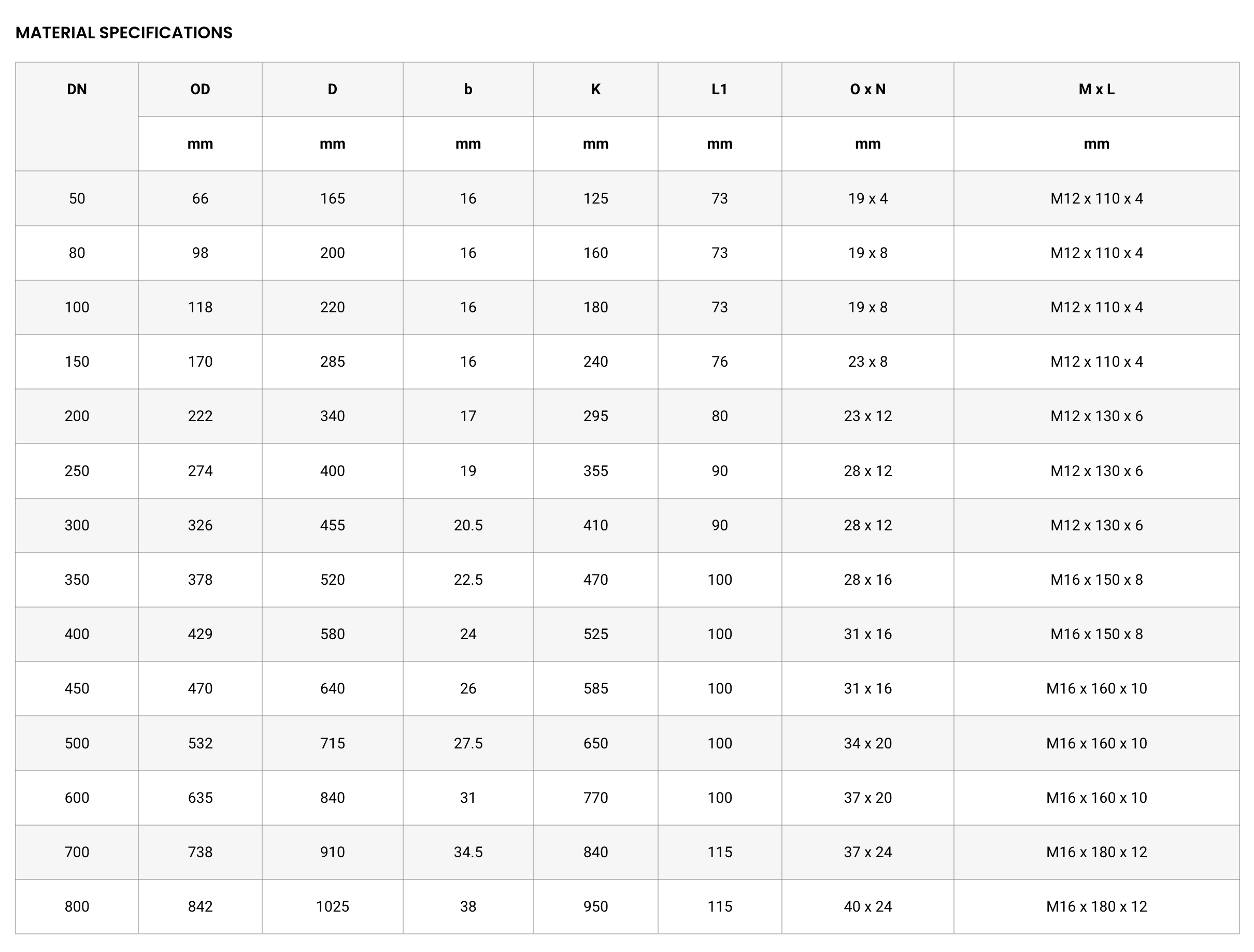

DN	OD	D	b	K	L1	O x N	M x L
DN	mm	mm	mm	mm	mm	mm	mm
50	66	165	16	125	73	19 x 4	M12 x 110 x 4
80	98	200	16	160	73	19 x 8	M12 x 110 x 4
100	118	220	16	180	73	19 x 8	M12 x 110 x 4
150	170	285	16	240	76	23 x 8	M12 x 110 x 4
200	222	340	17	295	80	23 x 12	M12 x 130 x 6
250	274	400	19	355	90	28 x 12	M12 x 130 x 6
300	326	455	20.5	410	90	28 x 12	M12 x 130 x 6
350	378	520	22.5	470	100	28 x 16	M16 x 150 x 8
400	429	580	24	525	100	31 x 16	M16 x 150 x 8
450	470	640	26	585	100	31 x 16	M16 x 160 x 10
500	532	715	27.5	650	100	34 x 20	M16 x 160 x 10
600	635	840	31	770	100	37 x 20	M16 x 160 x 10
700	738	910	34.5	840	115	37 x 24	M16 x 180 x 12
800	842	1025	38	950	115	40 x 24	M16 x 180 x 12
